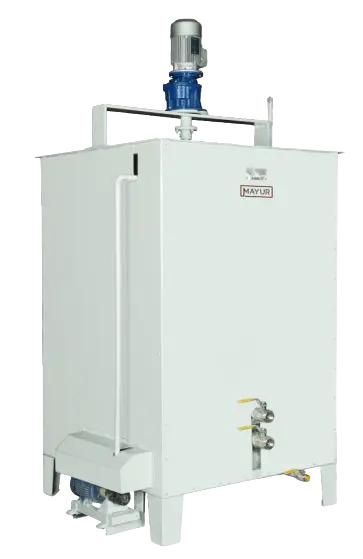

Wax Reclaim Tank
WRT1989-020
The wax after dewaxing process is containing dust particles and water particle within itself, the wax reclaim tank used to separate the impurities and settle it to its conical bottom and burn the water particle. It provides 75% filtered wax to reuse. Thermic oil provide to maintain wax properties same as it is, also ensure flame safety.
| Specification | |
|---|---|
| Tank Capacity | 1000 liters |
| Tank Size | Diameter 1100 MM X Height 1270 MM |
| Tank Material | S.S. 304 |
| Structure Material | M.S. Fabricated |
| Heat Source | Bobbin Heater / Mica Bayd Heater |
| Working Temp | 120°c |
| Fuel Type | Electric |
| Thermal Insulation | Tank Bottom Insulated With Refractory Bricks And Cerawool Tank Sides Insulated With Cerawool Blankets. |
